Swiss Type CNC Lathe
cnc auto lathe manufacturer
RSL-20
Top Performance, Economical price
driven tool holder for turning and milling
Feature
- The G.B type can be used to regulate material deflection and achieve accurate machining. For short parts, the N.G.B type can be used to minimize the residual material length and reduce the material cost.
- Design to adopt various toolling options. You can choose optimal tooling to achieve level of productivity. For example thread whirling unit, polygon unit, gear hobbing unit, and etc….
- The 4 cross drilling unit for back working. (Optional)
- The main spindle use built-in motor to minimize vibration and noise, resulting in high accuracy. The Max. speed can be up to 10,000 rpm.

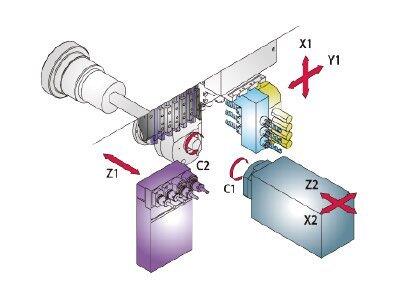

Tools Arrangement
- Excellent cutting and milling functions can do compound and complex processing.
- Serrated tool rest with O.D, tool holder (6pcs), power driven tool (ER11X2, ER16x2), 3-spindle front and back power driven tool unit(Opt.), 4 tool sleeve holder, back sleeve tool x4, back power driven tool holder (4pcs) (Opt.).
- C-Shaft Turning: The Main spindle and back spindle can do single processing individually or simultaneous turning together. It can also do special processing of C-shaft.

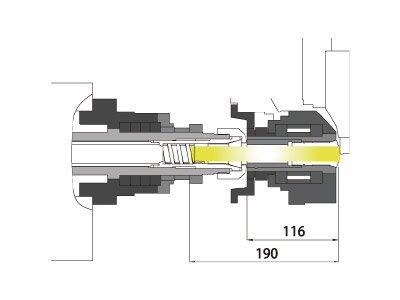

Revolving Guide Bush
R.G.B rotate with high speed, which can stabilize the workpiece and increase working performance.

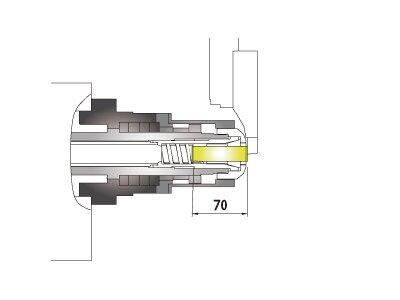

Non Guide Bush
Minimize the residual material length to save the material cost.
| Model | RSL-20 | |||
| Main Spindle | Max. Machining Diameter | Ø20 mm | ||
|---|---|---|---|---|
| Max. Turning Length(Revolving Guide Bush) | 205 mm | |||
| Max. Turning Length(None Guide Bush) | Material Dia. x 2.5(Max.50mm) | |||
| Min. Input Unit | 0.001 mm | |||
| O. D. Tool | Ø12mm x 6pcs | |||
| Sleeve Holder | Sleeve Size | C22-ER16 - 4pcs | ||
| Max. Drilling | Ø 10mm | |||
| Max. Tapping | M8 | |||
| Power Driven Tool | No. of Tools | ER11 x 2pcs ER16 x 2pcs | ||
| Max. Drilling | Ø 5mm(ER11) Ø 7mm(ER16) | |||
| Max. Tapping | M5(ER11) M6(ER16) | |||
| Power Driven Driver Motor | 1.0 kw (Continuous) / 1.2kw (5mins. - 30%ED) | |||
| Power Driven Tool Max. Speed | ER11 : 8,00Orpm / ER16 : 6,000rpm | |||
| Spindle Motor | 2.2 kw(Continuous) / 3.7kw (10mi ns. - 25%ED) | |||
| Main Spindle Speed | 10,000 rpm | |||
| Sub Spindle | Max. Machining Diameter | Ø20 mm | ||
| Max. Length for Front Ejection | 80 mm | |||
| Max. Parts Projection Length | 30 mm | |||
| Back 4- Spindle Holder | No. of Tools | Sleeve Tool x 4pcs (Opt. Power Driven Tool) | ||
| Max. Drilling | Sleeve Tool | Ø8 mm | ||
| Cross Tool | Ø6 mm | |||
| Max. Tapping | Sleeve Tool | M6 | ||
| Cross Tool | M5 | |||
| Max. Sub Spindle Speed | 9,000rpm | |||
| Sub Spindle Motor | 0.55 kw(Continuous) / 1.1kw(15mins. - 40%ED) | |||
| Power Driven Driver Motor | 0.75kw | |||
| Power Driven Tool Max. Speed | 8,000rpm | |||
| General | Axis Rapid Speed | 24m/min | ||
| Coolant Tank Capacity | 180L | |||
| Coolant Pump Motor | 960W | |||
| Machine Dimension | 2350 x 1260 x 1830 mm | |||
| Machine Weight (N. W.) | 1800kg | |||
| Power Supply | AC/3PH/220V/10kw | |||
| CNC Controller | FANUC Oi-F / MITSUBISHI-M80 | |||
| Standard Accessories |
| Operation Panel 10.4 inch Color LCD Display |
| Revolving Guide Bush |
| C-Axis control (Main & Sub Spindle) |
| Main & Sub Spindle Clamp Unit |
| O.D. Tool Holder |
| Power Driven Tool (ER11x2, ER16x2) |
| 4 Tool Sleeve Holder |
| Back Machining 4 Spindle Tool Unit |
| Door Interlock System |
| Coolant Flow Detector |
| Cut Off Detector |
| Air Cleaning for Revolving Guide Bush |
| Sub Spindle Chips Cleaning Unit (Air & Coolant Spray) |
| Parts Ejection Detector |
| Working Light |
| Pneumatic Unit |
| Lubrication Unit |
| Parts Conveyor |
| Optional Accessories |
| Non-Guide Bushing Holder |
| Auto Bar Feeder Machine |
| Chip Conveyor with Cart |
| Long Part Ejector with Guide Tube |
| High Pressure Coolant Device (30bar/70bar) |
| Oil Mist Collector |
| Auto Stabilizer |
| Auto Stabilizer & Transformer |
| CE Marking Version |
| 3-Spindle Front Power Driven Tool Unit |
| 2-Spindle Front Power Driven Tool Unit |
| Thread Whirling Unit |
| Polygon Unit |
| Slotting Unit |
| Gear Hobbing Unit |
| Back Machining 3 Spindle Power Driven Tool Unit |
Design and specification are subject to change without prior notice.
The sound pressure level is 80 dB(A) at the position of one meter outside the machine.
